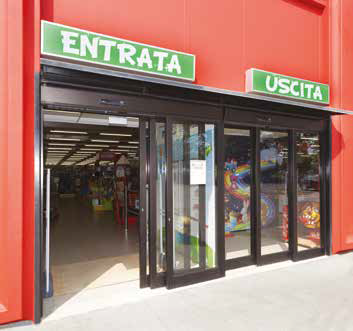

A1400 AIR Automation for sliding doors
The FAAC A1400 AIR SERIES automations are designed to
automate entrances in compliance with European standard EN
16005; in fact, they are able to meet the most stringent safety
requirements of EN 13489-1 Pl “c”.
Its innovative “Energy Saving” device enables it to identify
the direction of transit and optimises opening / closing times
perfectly to avoid unnecessary air dispersion, even in the event
of cross traffic.
The A1400 AIR automation is customisable and can be assembled
to meet the architectural and technical requirements of the
customer. Its two types of cover, the exclusive leaf attachment
systems and the various leaf profiles that can be used make it is
possible to achieve the best technical and architectural solution.
Designed to operate at best in any condition and in any
environment, it is the optimum solution for technicians who
wish to save assembly time, by rationalising inventories for the
final customer who will have full access to a product that is
personalised, ecological, reliable, safe, technologically advanced
and above all, that will pay for itself over time.
| MODEL | LEAF | PASSAGE OPENING (mm) | MAX. LEAF WEIGHT (mm) | SELF-SUPPORTING BEAM |
|---|---|---|---|---|
| A1400 AIR 1 | Single | 700-3000 | 200 Kg | No |
| A1400 AIR 2 | Double | 800-3000 | 120+120Kg | No |
| A1400 AIR A 1 | Single | 700-3000 | 200 Kg | Yes |
| A1400 AIR A 2 | Double | 800-3000 | 120+120 Kg | Yes |
| A1400 AIR DM 1 | Single | 800-3000 | 250 Kg | No |
| A1400 AIR DM 2 | Double | 900-3000 | 180+180 Kg | No |
| A1400 AIR T 2 | Single telescopic | 1100-3000 | 110+110 Kg | No |
| A1400 AIR T 4 | Double telescopic | 1400-4000 | 60+60+60+60 Kg | No |
| A1400 AIR A T 2 | Single telescopic | 1100-3000 | 110+110 Kg | Yes |
| A1400 AIR A T 4 | Double telescopic | 1400-4000 | 60+60+60+60 Kg | Yes |
SDK EVO PROGRAMMING AND FUNCTIONS KEYPAD
Supplied as an accessory, it comes with a large graphics display that
allows full access to all the door parameters via the four buttons that
allow the user to navigate through the menus
| MODEL | SDK EVO |
|---|---|
| Operating functions | Manual – Night – Automatic One-directional – Partial One-directional Partial opening – Open – Reset and setup |
| Operating functions selection | Via buttons with indication of the selected function on the display. Option of locking the keypad via a jumper or a combination of keys. |
| Main programming functions | User and installer password entry – Opening and closing speed adjustment- Opening and closing force adjustment – Anti-crushing adjustment – Pause time adjustment – Energy Saving Enable – Diagnostics display management – Weekly calendar management – Battery kit and motor block management – I/O programming – Maintenance cycles notification – Display of number of cycles performed |
| Programming | Full with PROGRAMMER password and basic with USER code. |
LK EVO FUNCTIONS SELECTOR
Supplied as an accessory, it allows the main functions of the
automation to be accessed and indicates if they are enabled by
means of LEDs.
| MODEL | LK EVO |
|---|---|
| Operating functions | Manual – Night – Automatic One-directional – Partial One-directional Partial opening – Open – Reset and setup |
| Operating functions selection | Via buttons with indication of the selected function on the display. Option of locking the keypad via a jumper or a combination of keys. |
| Main programming functions | User and installer password entry – Opening and closing speed adjustment- Opening and closing force adjustment – Anti-crushing adjustment – Pause time adjustment – Energy Saving Enable – Diagnostics display management – Weekly calendar management – Battery kit and motor block management – I/O programming – Maintenance cycles notification – Display of number of cycles performed |
| Programming | Full with PROGRAMMER password and basic with USER code. |
