950N2 AUTOMATION FOR SWING DOORS
| MODEL | Leaf length (mm) | Max leaf weight (kg) Articulated push arm | Max leaf weight (kg) Short sliding arm | Max leaf weight (kg) Standard sliding arm |
|---|---|---|---|---|
| 950N2 | 700 | 367 | 286 | – |
| 750 | 320 | 249 | – | |
| 800 | 281 | 219 | – | |
| 850 | 249 | – | 194 | |
| 900 | 222 | – | 173 | |
| 950 | 199 | – | 155 | |
| 1000 | 180 | – | 140 | |
| 1050 | 163 | – | 127 | |
| 1100 | 149 | – | 116 | |
| 1150 | 136 | – | 106 | |
| 1200 | 125 | – | 97 | |
| 1250 | 115 | – | 90 | |
| 1300 | 107 | – | 83 | |
| 1350 | 99 | – | 77 | |
| 1400 | 92 | – | 71 |
VERSATILE AND STYLISH
The FAAC 950N2 automations (with spring closing
system) can be installed both on the architrave and
directly on the structure of the door.
The innovatively designed housing cover can be
supplied in anodised extruded aluminium or moulded

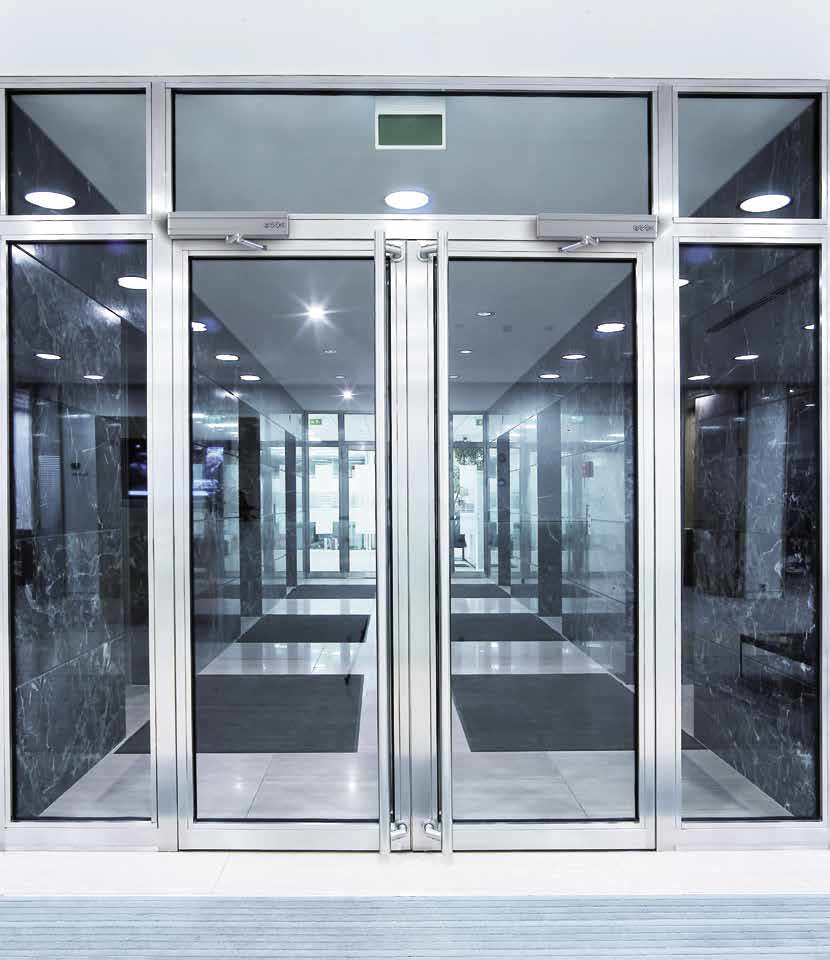

ABS. The 950N2 automations can also be used to
automate double-leaf entrances by setting up two
units in a master / slave configuration allowing the
double leaf to be moved as if by a single system.
POWERFUL AND RELIABLE
Carefully selected mechanical and electrical components means that our 950N2 automation
system is able to move leaves weighing over 360 Kg in continuous use, while always maintaining absolute
operational safety.
SAFE AND INTELLIGENT
The automation system is equipped with two
electronic boards: 950N2 MPS (control board) and
950N2 I/O (input/output board). A microprocessor
controls all door activity in real time and a magnetic
encoder continuously detects its angular position.
The operating logic (automatic, manual, night, open)
can also be selected via an integrated selector. The
system is manufactured in conformity with the new
European Safety Standards. The speed and force
are programmed according to the dimensions of the
door. If an obstacle is detected, the door re-opens
immediately and as it closes, it checks, at reduced
speed, that the obstacle is no longer present.
STANDARD FUNCTIONS
- Operating logics: AUTOMATIC, OPEN, MANUAL/NIGHT
- Self-learning of open and closed positions and door weight measurement
- Anti-crushing safety device active during both opening and closing
- Selectable “PUSH and GO” function (commands the opening by simply pushing the door)
- Selectable “ANTI-WIND” function (ensures that the door is closed even if there is strong wind)
- Closing thrust to ensure that the door closes even if there is strong wind
- AVS function (Anti Vandal System) to protect the motor if the leaf movement is forced
- Manual operation in the event of mains power failure
- Adjustment trimmer for opening speed, closing speed and pause time
- Can be used with microwave radar, infrared sensors, laser sensors, push-button controls, photocells, electric locks, locks, KP EVO programming unit, FAAC radio controls
The following functions can be used using the KP EVO, LK EVO and KS EVO functions keypad:
- Operating logics: AUTOMATIC, MANUAL, OPEN, ONE-DIRECTIONAL, NIGHT, PARTIAL OPEN, DIAGNOSTICS WITH A WIDE RANGE OF SIGNALS.
The following functions can be used using the KP EVO keypad with integrated display:
- Opening and closing speed adjustment
- Pause time adjustment
- Opening width adjustment
- Interlock function
- Master-Slave function for double leaf doors
- Can be used with acoustic or light signal transit indicators
- Self-diagnosis
